產品展示您現在的位置：首 頁 - 產品展示 - 電池 - 以色列TADIRAN
 |

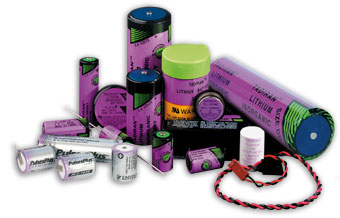

產品名稱：TADIRAN 產品介紹： TADIRAN |
詳細介紹
詳細資料請點擊：http://m.53do.com/tadiran.html
Related Documents
Cylindrical Cells
|
Model Data Sheet |
Cell Size Ref | Catalog Number |
Nominal Capacity (Ah) |
Nominal Discharge Current (mA) |
Dimensions (metric) Diameter/Height |
Dimensions (standard) Diameter/Height |
Available Terminations | |
| TLH-5902 | 1/2 AA | 15-5902-yy505 | 0.9 | 1.0 | 14. /25.2 | 0.571/0.992 | S P T TP PT PT2 | |
| TLH-5955 | 2/3 AA | 15-5955-yy505 | 1.4 | 1.3 | 14.5/33.5 | 0.571/1.319 | S P T TP PT PT2 | |
| TLH-5903 | AA | 15-5903-yy505 | 2.0 | 1.0 | 14.5/50.5 | 0.571/1.998 | S P T TP PT PT2 | |
| TLH-5920 | C | 15-5920-yy505 | 7.5 | 3.0 | 26.2/50.0 | 1.031/1.970 | S T | |
| TLH-5930 | D | 15-5930-yy505 | 17.0 | 5.0 | 32.9/61.5 | 1.295/2.421 | S T |
Notes:
Nominal Voltage for all batteries is 3.6V
Temperature Range for all batteries is from -55°C to +125°C
Custom Terminations Available Upon Request
Wafer Cells
|
Model Data Sheet |
Cell Size Ref | Catalog Number |
Nominal Capacity (Ah) |
Nominal Discharge Current (mA) |
Dimensions (metric) Diameter/Height |
Dimensions (standard) Diameter/Height |
Available Terminations | |
| TLH-2450 | 2450 | 15-2450-41532 | 0.55 | 0.5 | 24.5/5.8 | 0.965/0.228 | 2-pin | |
| TLH-5934 | 1/10 D | 15-5934-41505 | 0.9 | 1 | 32.9/6.5 | 1.295/0.256 | 3-pin | |
| TLH-5935 | 1/6 D | 15-5935-41505 | 1.5 | 1 | 32.9/10.2 | 1.295/0.401 | 3-pin |
Standard Battery Packs
|
Model Data Sheet |
Cell Size Ref | Catalog Number |
Nominal Capacity (Ah) |
Nominal Discharge Current (mA) |
Dimensions (metric) Diameter/Height |
Dimensions (standard) Diameter/Height |
|
| TL-5242/W | MBU | 15-5242-40000 | 2.10 | 2.0 | 16.7x18.1x62 | 0.65x0.71x2.44 | |
| TL-5276/W | MBU | 15-5276-30000 | 1.00 | 1.0 | Ø 16.8x28.6 | Ø 0.661x1.126 | |
| TL-5920/B | Main Power | 15-5920-80000 | 8.50 | 3.0 | Ø 28.0x51.0 | Ø 1.102x2.007 | |
| TL-5930/F | Main Power | 15-5930-40000 | 19.00 | 4.0 | Ø 35.0x62.5 | Ø 1.378x2.461 |
